7007

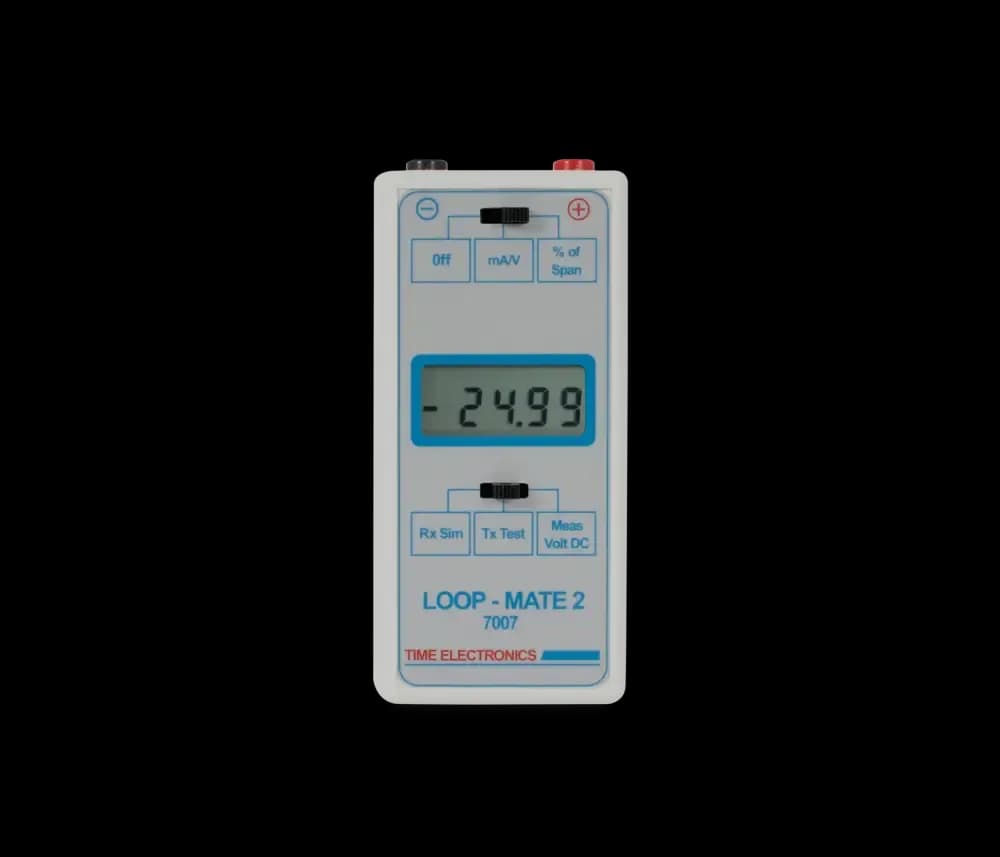

7007 Loop Signal Indicator
Time Electronics 7007 便携式电压电流校准仪，4 - 20 mA, 0 -10 V, 0 - 50 V ranges
产品概述
The 7007 LoopMate 2 is a dedicated loop signal indicator (RxSim) with an in-built 24 V loop drive supply (TxTest). The operator can select the loop type, and also the type of units, either direct (mA) or % of span display. The loop signal is shown on an easy to read LCD display to an accuracy of 0.05% either in mA, V, or % of span. 主要特点：4 - 20 mA, 0 -10 V, 0 - 50 V ranges；LCD 4
技术参数
| Display | LCD 4 digits, mA, V, or % of spanSpecifications |
|---|---|
| Modes | RxSim, TxTest, or 50 mA/50 V measureSpecifications |
| Loop Supply | Internal, 25 mA maxSpecifications |
| Power | PP3 battery, typical life 40 hoursSpecifications |
| Dimensions | H 140 x W 65 x D 30 mmSpecifications |
| Weight | 200 gSpecifications |
| Supplied With | Carry Case, test leads and user manualSpecifications |
| Optional Extras | Calibration certificates: Traceable (Factory) and accredited (ISO 17025)Specifications |
| Country of Origin | UKSpecifications |
| Shipping Details | Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 2 kgSpecifications |
| HS Code | 9030 3370Specifications |
| C145 | Traceable calibration certificate (Factory)Specifications |
| C144 | Accredited calibration certificate (ISO 17025)Specifications |
| 7007 Loop Indicator Data Sheet | 395 kB / EN ES FR IT / PDFSpecifications |
| 7007 Loop Indicator User Manual | 1.82 MB / EN / PDFSpecifications |
| 型号 | 7007Models |
