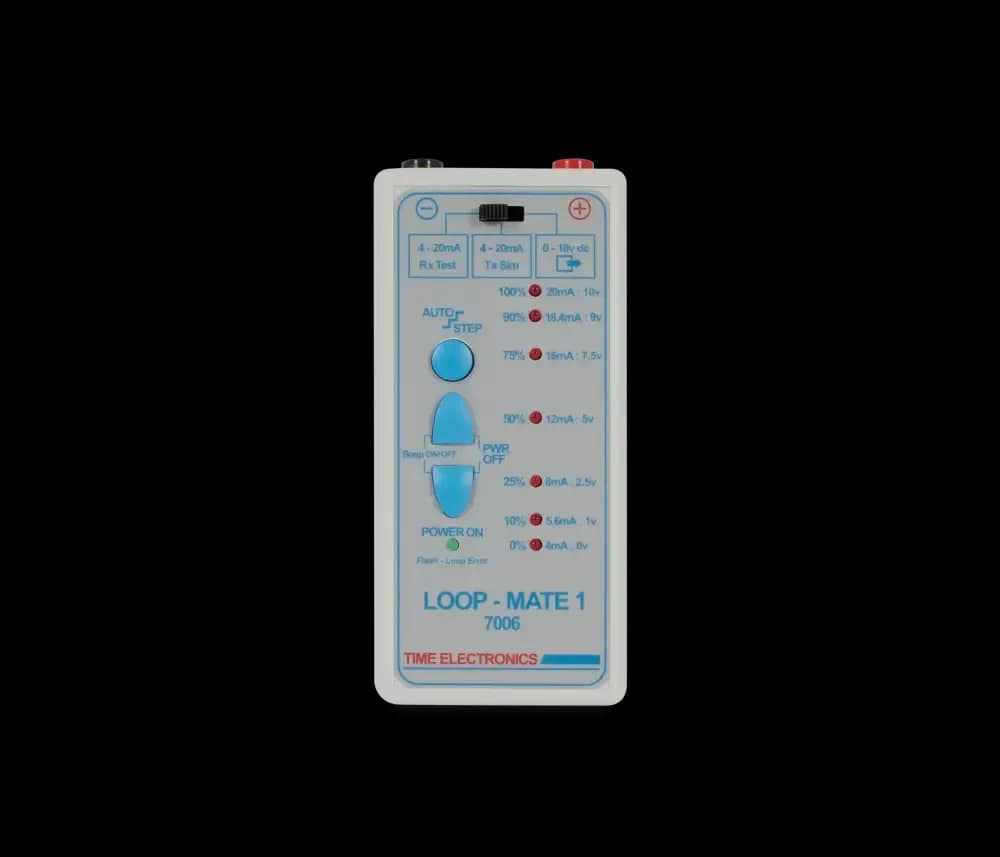

7006 Loop Simulator & Source
Time Electronics 7006 便携式电压电流校准仪，4 to 20 mA or 0 to 10 V loops
产品概述
The 7006 is a single function low-cost pocket sized simulator, designed for test and calibration of process loops. It is simple operation and engineers will be able to pick up the unit and get to work immediately. Just select 4 to 20 mA or 10 V loop, and TxSim, RxTest, or 0 to 10 V DC simulation mode. Internal loop drive supply for powering the loop is also available if require
技术参数
| Set-Points | 0, 10, 25, 50, 75, 90, 100 % of spanSpecifications |
|---|---|
| Modes | TxSim or RxTestSpecifications |
| Loop Supply | Internal, 25mA maxSpecifications |
| Auto-Step | Up/Down/Up, 0.5, 1, 2, 4, or 8 sec/stepSpecifications |
| Power | PP3 battery, typical life 40 hoursSpecifications |
| Dimensions | H 140 x W 65 x D 30 mmSpecifications |
| Weight | 180 gSpecifications |
| Supplied With | Carry Case and user manualSpecifications |
| Optional Extras | Calibration certificates: Traceable (Factory) and accredited (ISO 17025)Specifications |
| Country of Origin | UKSpecifications |
| Shipping Details | Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 2 kgSpecifications |
| HS Code | 9030 3370Specifications |
| C145 | Traceable calibration certificate (Factory)Specifications |
| C144 | Accredited calibration certificate (ISO 17025)Specifications |
| 7006 Loop Simulator & Source Data Sheet | 395 kB / EN ES FR IT / PDFSpecifications |
| 7006 Loop Simulator & Source User Manual | 1.3 MB / EN / PDFSpecifications |
| 型号 | 7006Models |
