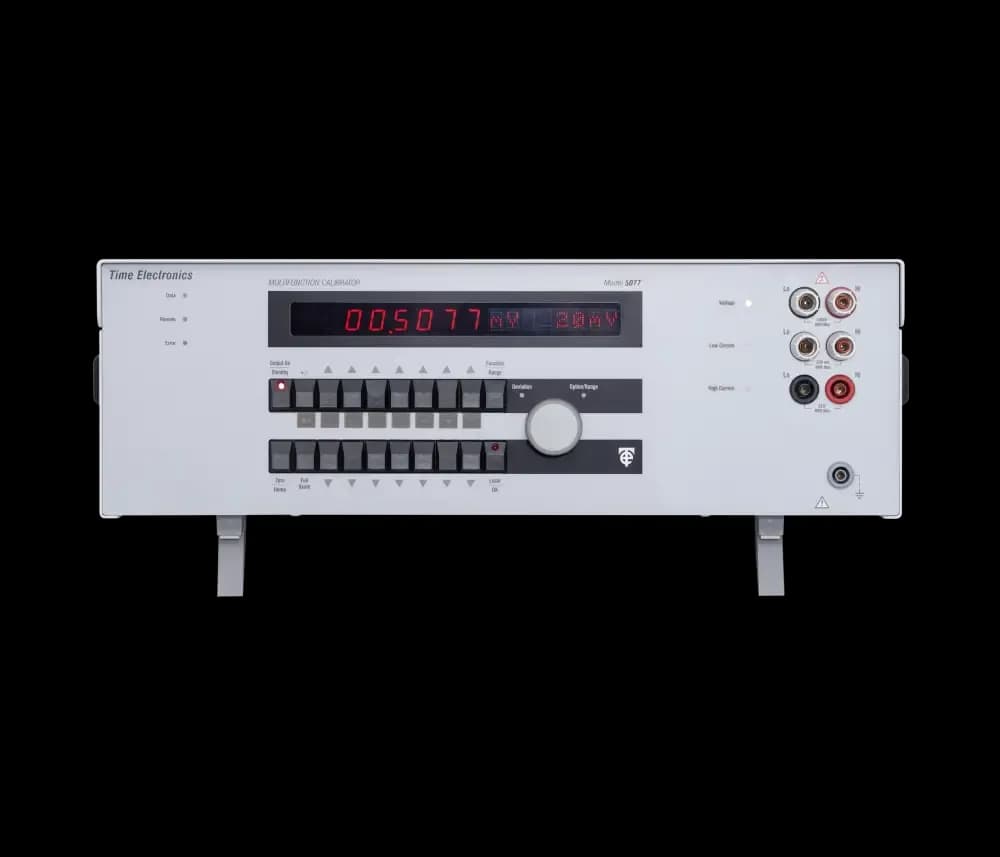

5077 Multifunction Power Calibrator
Time Electronics 5077 多功能校准仪，0 to 1050 V AC/DC voltage
产品概述
The 5077 Series 2 model is a multifunction calibrator for sourcing AC/DC voltage and current, and single-phase power. It can be used as a workload calibrator for verification of electrical measurement devices, or as a programmable source in an automated test rig for meter testing. The series 2 model offers the same coverage as it's predecessor with additional ranges, front pane
技术参数
| DC Voltage | 0 to ± 1050 V / ± 40 ppm of settingSpecifications |
|---|---|
| DC Current | 0 to ± 22 A 1000 A with clamp meter adaptor (option 9780) / ± 120 ppm of settingSpecifications |
| DC Power (simultaneous output of V/I) | 23 kW / 23 kVA DCV: 2 mV to 1050 V DCI: 2 mA to 22 A / * ± 100 ppm of setting ± 150 ppm of settingSpecifications |
| AC Voltage | 2 mV to 1050 V / 20 Hz to 20 kHz sine-wave / ± 0.05 % of settingSpecifications |
| AC Current | 10 μA to 22 A / 20 Hz to 5 kHz sine-wave 100 A with current transformer (option 9790) 1000 A with clamp meter adaptor (option 9780) / ± 0.07 % of settingSpecifications |
| AC Power (simultaneous output of V/I) | 23 kW / 23 kVA, 40 to 500 Hz ACV: 2 mV to 1050 V ACI: 2 mA to 22 A / * ± 0.05 % ± 0.1 %Specifications |
| Phase | ± 90.0°, 40 to 500 Hz / ± 0.25°Specifications |
| Power Factor | 0.00 to 1.00, 40 to 500 Hz / –Specifications |
| Option 9780: Clamp meter adaptor | AC/DC Current up to 1000 A (DC, 45 to 90 Hz) / ± 0.5 %Specifications |
| Mains voltage | 100 to 260 V AC 50/60 Hz.Specifications |
| Fuse ratings | 3.15 A anti-surge.Specifications |
| Power consumption | 120 W typical, 200 W maximum.Specifications |
| Temperature performance | Operating: 10 to 40 °C. Storage: –10 to 50 °C.Specifications |
| Operating humidity | < 80 % non condensing.Specifications |
| Altitude | 0 to 3 km. Non operating: 3 to 12 km.Specifications |
| Interfaces | RS-232, GPIB and USB (via RS-232 adaptor). Command set: Standard SCPI.Specifications |
| Dimensions / Weight | W 447 x H 152 x D 470 mm. Weight: 16.5 kg.Specifications |
| Supplied accessories | Test lead set, calibrator control software, RS-232 cable, RS-232 to USB adaptor, user manual.Specifications |
| Country of Origin | UKSpecifications |
| Shipping Details | Packed Dimensions: L 66 x W 71 x H 42 cm / Packed Weight: 24 kgSpecifications |
| HS Code | 9030 3900Specifications |
| 5077-S2 | 5077 Series 2 Multifunction Power Calibrator AC/DC 1050 V / 22 A, 23 kW single-phase power calibration. Supplied with test lead set, calibrator control software, traceable calibration certificate.Model Options |
| 5077-S2/ACRD | 5077 Series 2 Multifunction Power Calibrator with accredited calibration AC/DC 1050 V / 22 A, 23 kW single-phase power calibration. Supplied with test lead set, calibrator control software, accredited calibration certificate (ISO 17025).Model Options |
| 9780 | Clamp meter adaptor (1 and 50 turn coil) - View data sheetAdaptors, accessories and options |
| 9790 | 100 Amp AC current transformer - View data sheetAdaptors, accessories and options |
| 9085 | Soft carry caseAdaptors, accessories and options |
| 9059 | Hard transit case - View data sheetAdaptors, accessories and options |
| 9728 | 19 " universal rack mount kitAdaptors, accessories and options |
| 9796 | Premium test lead set (basic test lead set supplied as standard) - View data sheetAdaptors, accessories and options |
| EW01 | Extended warranty - 3 years total covering parts and labour.Adaptors, accessories and options |
| ECFL-RN1Y/1L | EasyCal Calibration Software - 1x Full user license (renewal subscription type). Recurring payment every 12 months. Ongoing support contract included. License key type: USB dongle.EasyCal software licenses |
| ECFLA | EasyCal Calibration Software - 1x Full user license (perpetual lifetime type). One-time payment. 1 year support contract included. License key type: USB dongle.EasyCal software licenses |
| 9795 | Printer and connectivity kit - View data sheetEasyCal accessories |
| 9777 | Bar code reader - View data sheetEasyCal accessories |
| 9778 | Cal and ID label printer - View data sheetEasyCal accessories |
| 9779 | Job and address label printer - View data sheetEasyCal accessories |
| 9597 | GPIB cableEasyCal accessories |
| 9794 | GPIB to USB adaptorEasyCal accessories |
| 5077-S2 Multifunction Power Calibrator Data Sheet | 376 kB / EN / PDFSpecifications |
| 5077-S2 Multifunction Power Calibrator Extended Specifications | 295 kB / EN / PDFSpecifications |
| 5077-S2 Multifunction Power Calibrator User Manual | 4.4 MB / EN / PDFSpecifications |
| 50XX-S2 Calibrator Control Software User Manual | 16 MB / EN / PDFSpecifications |
| EasyCal Calibration Software Brochure | 10 MB / EN / PDFSpecifications |
