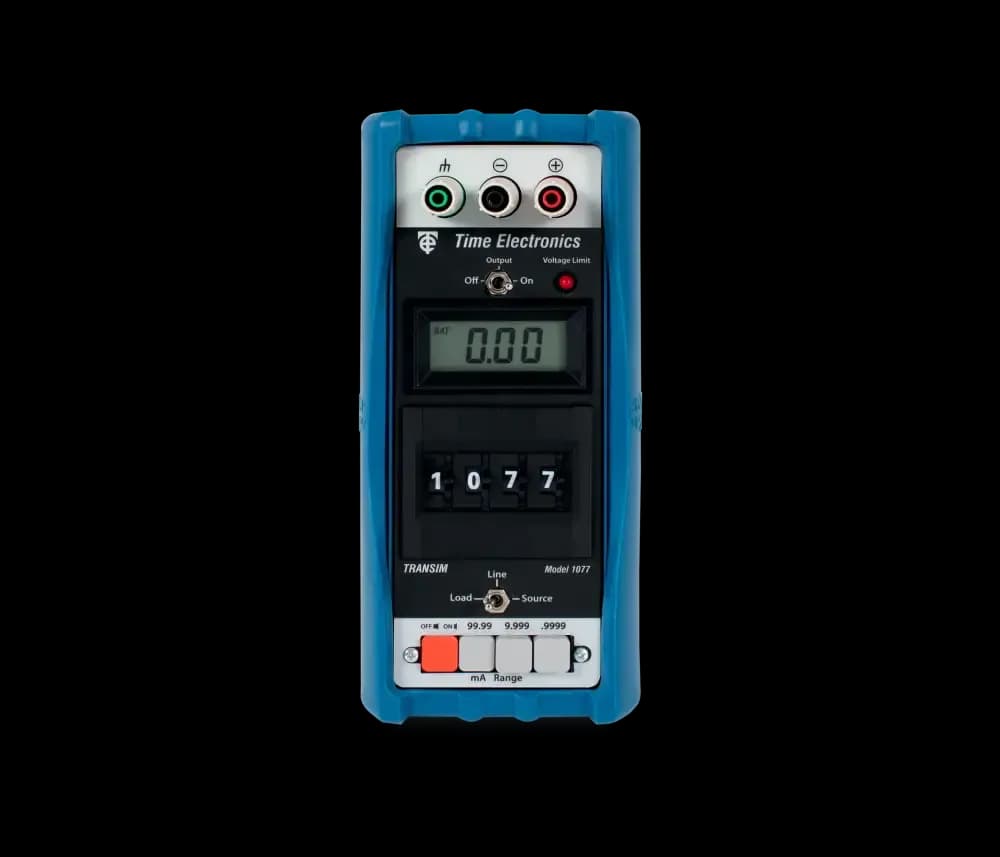

1077 Milliamp Transducer Simulator
Time Electronics 1077 便携式电压电流校准仪，3 operating modes
产品概述
A multi-purpose handheld test instrument that can be used as an adjustable current load, adjustable power supply, or precision current source. The 1077 is commonly used for the testing and simulation of milliamp transducer systems. 主要特点：3 operating modes；100 mA source and load；Safety terminals；Battery level indicator；Supplied with protective cover。
技术参数
| Output Stability | Less than 60 ppm/°C. Less than 25 ppm/hour at constant temperature.Current Source and Load |
|---|---|
| Output Noise | Less than 15 ppm of full scale.Current Source and Load |
| Drive Voltage | Adjustable from 14 to 40 V (Source mode).Current Source and Load |
| Drive Power | 2.4 W maximum.Current Source and Load |
| Applied Voltage | 3 V minimum to 40 V maximum (Load mode).Current Source and Load |
| Voltage Limit Indicator | Provides indication of insufficient drive voltage.Current Source and Load |
| 24 V Line Simulation | Adjustable 14 V to 40 V, 100 mA current limit, Maximum output power 2.4 W.24 Volt Line Simulation |
| Display | A 3.5 digit (1999 max) LCD display indicating line current.24 Volt Line Simulation |
| Dimensions | H 200 x W 75 x D 110 mm (H 215 x W 100 x D 120 mm including protective cover).Specifications |
| Weight | 1.1 kg (1.5 kg including protective cover).Specifications |
| Power Supply | NiMH rechargeable batteries with external mains recharger (supplied).Specifications |
| Supplied With | Protective cover (fitted), rechargeable battery pack (installed) with mains charger, and user manual.Specifications |
| Optional Extras | Carry case (protective cover is removed when used). Calibration certificates: Traceable (factory) and accredited (ISO 17025).Specifications |
| Country of Origin | UKSpecifications |
| Shipping Details | Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 3 kgSpecifications |
| HS Code | 9030 3370Specifications |
| 9027 | Carry caseSpecifications |
| C158 | Traceable calibration certificate (Factory)Specifications |
| C108 | Accredited calibration certificate (ISO 17025)Specifications |
| 1077 Milliamp Transducer Simulator Data Sheet | 480 kB / EN / PDFSpecifications |
| 1077 Milliamp Transducer Simulator User Manual | 357 kB / EN / PDFSpecifications |
| 型号 | 1077Models |
