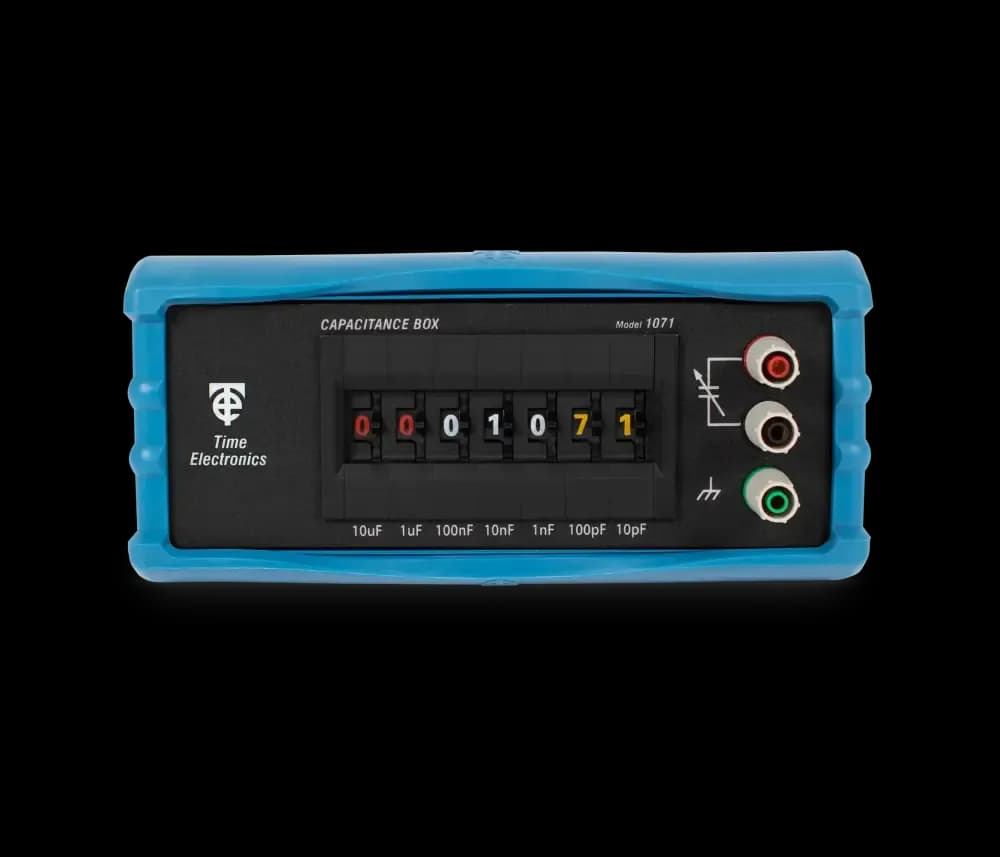

1071 Capacitance Decade Box
Time Electronics 1071 十进制电阻/电容/电感箱，10 pF to 100 μF
产品概述
High accuracy and wide range makes the 1071 capacitance decade box suitable for applications in industry and education. 主要特点：Colour coded digits；Safety terminals；Bi-polar working；Supplied with protective cover。
技术参数
| Residual Capacitance | Approximately 55 pFSpecifications |
|---|---|
| Decade | 10 pF / 100 pF / 1 nF / 10 nF / 100 nF / 1 μF / 10 μFSpecifications |
| Capacitor Type | Silver mica / Silver mica / Silver mica / Silver mica / Polycarbonate / Polycarbonate / PolyesterSpecifications |
| Max Voltage | 300 V DC 200 V AC / 300 V DC 200 V AC / 300 V DC 200 V AC / 100 V DC 72 V AC / 100 V DC 72 V AC / 100 V DC 115 V AC / 63 V DC 50 V ACSpecifications |
| Max Temp Coefficient | 200 ppm/°C / 200 ppm/°C / 50 ppm/°C / 50 ppm/°C / 75 ppm/°C / 75 ppm/°C / 300 ppm/°CSpecifications |
| Power Factor @ 1 kHz | < 0.0025 / < 0.0015 / < 0.002 / < 0.01 / < 0.01 / < 0.01 / < 0.01Specifications |
| Insulation Resistance | > 50 GΩ / > 50 GΩ / > 50 GΩ / > 30 GΩ / > 30 GΩ / > 30 GΩ / > 30 GΩSpecifications |
| Dimensions | W 215 x H 100 x D 120 mm including protective cover (W 200 x H 75 x D 110 mm without)Specifications |
| Weight | 1 kg including protective cover (0.8 kg without)Specifications |
| Supplied With | Protective cover (fitted) and user manualSpecifications |
| Optional Extras | Carry case (protective cover is removed when used). Calibration certificates: Traceable (factory) and accredited (ISO 17025).Specifications |
| Country of Origin | UKSpecifications |
| Shipping Details | Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 2 kgSpecifications |
| HS Code | 9030 3370Specifications |
| 9026 | Carry CaseSpecifications |
| C161 | Traceable calibration certificate (Factory)Specifications |
| C114 | Accredited calibration certificate (ISO 17025))Specifications |
