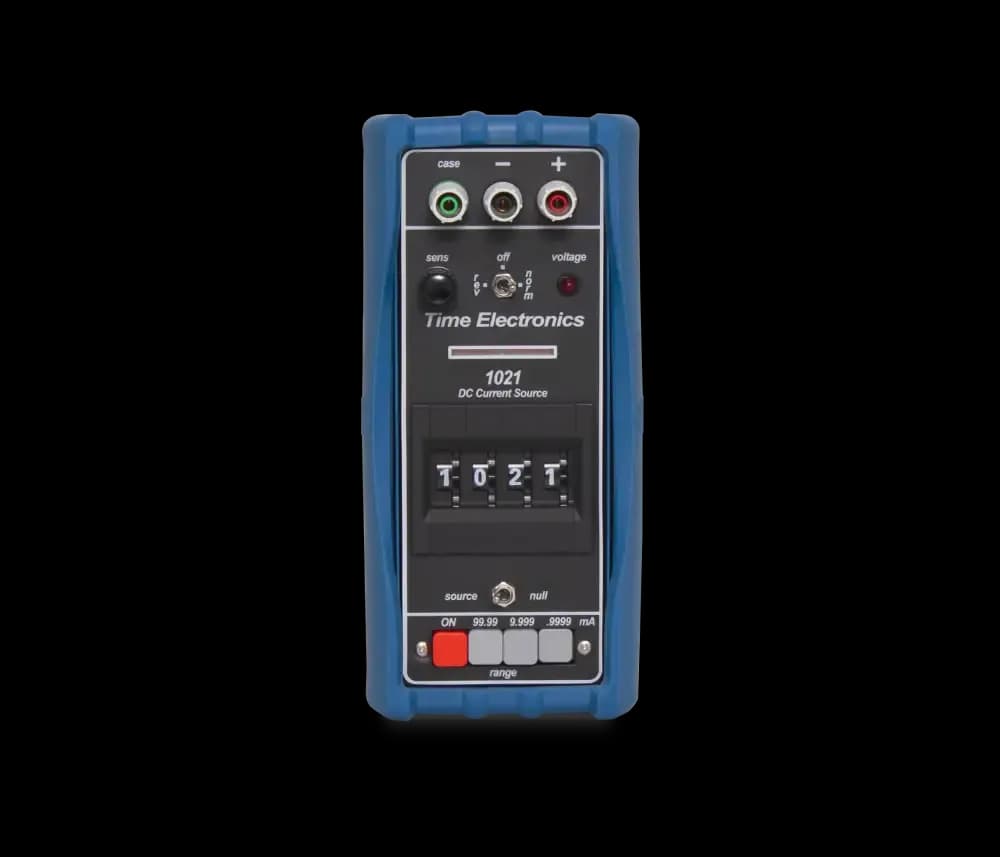

1021 DC Current Source - DISCONTINUED
Time Electronics 1021 便携式电压电流校准仪，0 to 100 mA output in 3 ranges
产品概述
Available from RS Components or minimum order quantity x3 with extended delivery times applicable. 主要特点：0 to 100 mA output in 3 ranges；25 ppm/hr stability；Up to 40 V output drive；Short circuit and overload protected；Safety terminals。
技术参数
| Voltage Capacity | Adjustable between 14 and 40 volts. Maximum output power 2.4 watts.Specifications |
|---|---|
| Voltage Limit Indicator | Provides indication of insufficient drive voltageSpecifications |
| Output Polarity | Positive or negative switch selected. A centre ‘off’ position provides an open circuit on the output terminals.Specifications |
| Output Stability | Better than 60 ppm/°C (-10 °C to +50 °C). Better than 25 ppm/hr (at constant temperature).Specifications |
| Output Noise | Less than 15 ppm of full scaleSpecifications |
| Load Regulation | Better than 20 ppm per volt change in outputSpecifications |
| Power Supply | NiMH rechargeable batteries with external mains recharger (supplied as standard).Specifications |
| Dimensions | H 200 x W 75 x D 110 mm (H 215 x W 100 x D 120 mm including protective boot)Specifications |
| Weight | 0.75 kg (1.1 kg including protective boot)Specifications |
| Supplied With | Protective cover (fitted), rechargeable battery pack (installed) with mains charger, and user manualSpecifications |
| Optional Extras | Carry case (protective cover is removed when used). Calibration certificates: Traceable (factory) and accredited (ISO 17025).Specifications |
| Country of Origin | UKSpecifications |
| Shipping Details | Packed Dimensions: L 31 x W 24 x H 25 cm / Packed Weight: 3 kgSpecifications |
| HS Code | 9030 3370Specifications |
| 9027 | Carry caseSpecifications |
| C153 | Traceable calibration certificate (Factory)Specifications |
| C105 | Accredited calibration certificate (ISO 17025)Specifications |
| 1021 DC Current Source and Calibrator Data Sheet | 872 kB / EN ES FR IT / PDFSpecifications |
| 1021 DC Current Source and Calibrator User Manual | 680 kB / EN / PDFSpecifications |
| 型号 | 1021Models |
