产品概述

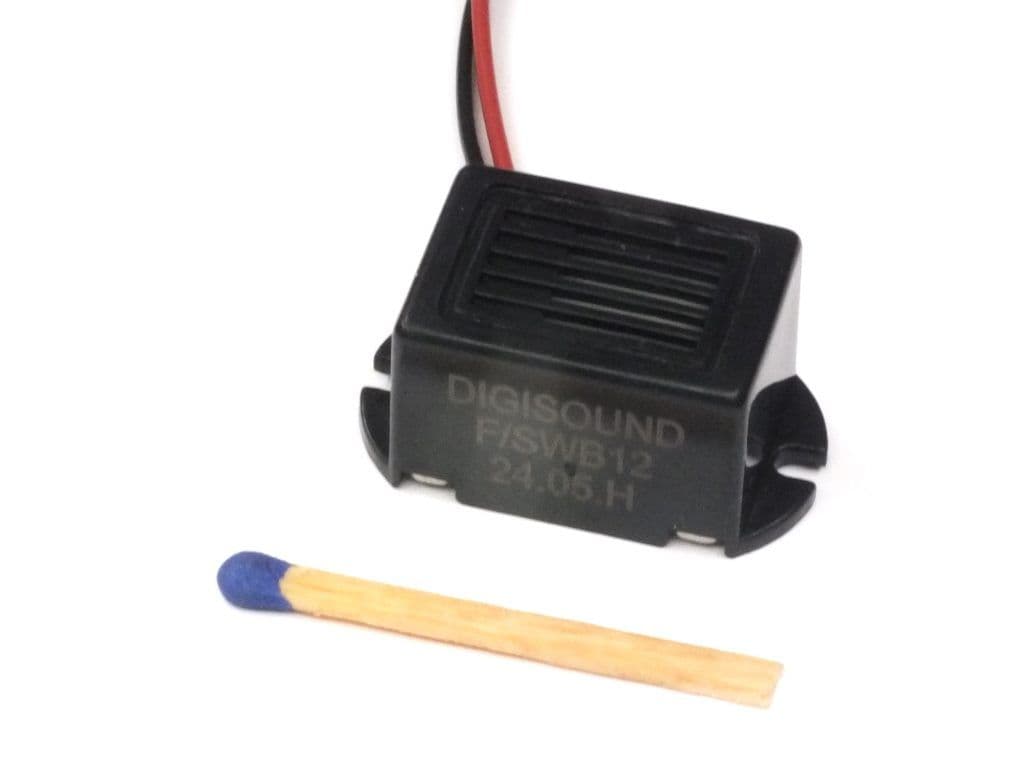

F/SWB 12 是 DIGISOUND（德国电声器件制造商）旗下 Mechanical Buzzer with Oscillator and Wire（蜂鸣器）产品。其核心参数包括：31 x 17 x 15 mm；12 VDC；≥88 dB(A) at 30 cm。该器件按工业级标准设计，适用于报警、提示、广播及传感类应用。我司作为 DIGISOUND 产品的授权经销渠道，可为中国客户提供选型支持、技术资料与稳定供货，具体规格以原厂 datasheet 为准。
技术参数
| Dimension | 31 x 17 x 15 mmMechanical Buzzer with Oscillator and Wire |
|---|---|
| Rated Voltage | 12 VDCMechanical Buzzer with Oscillator and Wire |
| Operating Voltage | 8 - 16 VDCMechanical Buzzer with Oscillator and Wire |
| Sound Pressure Level | ≥88 dB(A) at 30 cmMechanical Buzzer with Oscillator and Wire |
| Tone | Continuous ToneMechanical Buzzer with Oscillator and Wire |
| Oscillator Frequency | 400 ±100 HzMechanical Buzzer with Oscillator and Wire |
| Operating Temperature | -20 to +70 °CMechanical Buzzer with Oscillator and Wire |
