产品概述

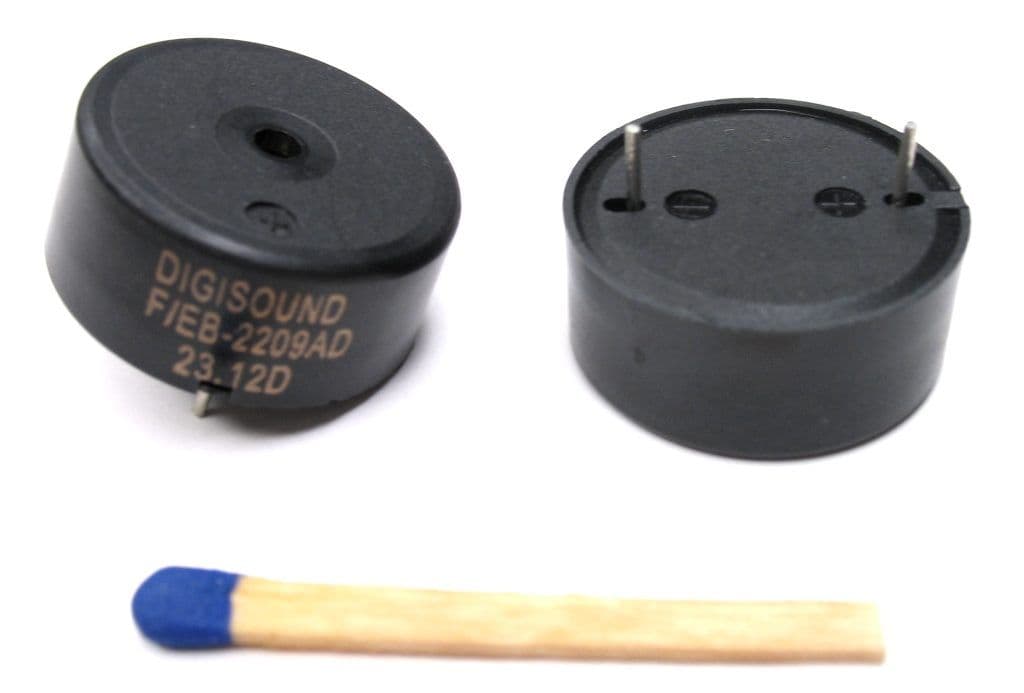

F/EB2209AD 是 DIGISOUND（德国电声器件制造商）旗下 Piezo THT Buzzer with oscillator（蜂鸣器）产品。其核心参数包括：Ø22.8 x 9.8 mm；12 VDC；≥85 dB(A) at 30 cm。该器件按工业级标准设计，适用于报警、提示、广播及传感类应用。我司作为 DIGISOUND 产品的授权经销渠道，可为中国客户提供选型支持、技术资料与稳定供货，具体规格以原厂 datasheet 为准。
技术参数
| Dimension | Ø22.8 x 9.8 mmPiezo THT Buzzer with oscillator |
|---|---|
| Rated Voltage | 12 VDCPiezo THT Buzzer with oscillator |
| Operating Voltage | 3 - 24 VDCPiezo THT Buzzer with oscillator |
| Sound Pressure Level | ≥85 dB(A) at 30 cmPiezo THT Buzzer with oscillator |
| Resonance Frequency (F0) | 3500 ±500 HzPiezo THT Buzzer with oscillator |
| Tone | ContinuousPiezo THT Buzzer with oscillator |
| Operating Temperature | -40 to +85 °CPiezo THT Buzzer with oscillator |
