产品概述

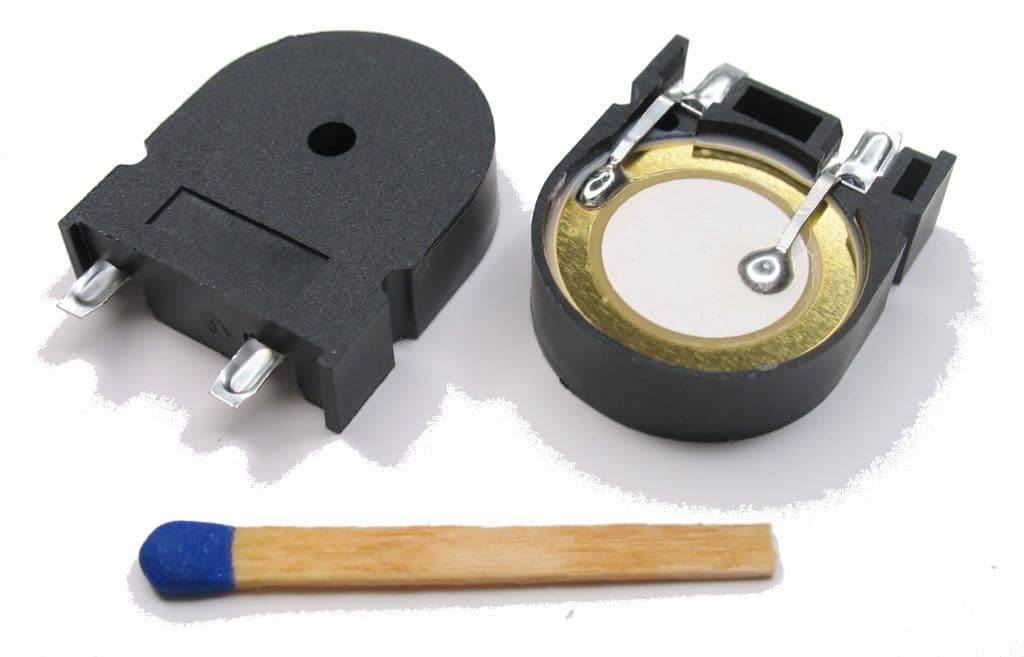

F-B-P2209EPB 是 DIGISOUND（德国电声器件制造商）旗下 Piezo Buzzer without oscillator（蜂鸣器）产品。其核心参数包括：22 x 7 x 26.5 mm；9 Vpp；≥85 dB(A) at 10 cm。该器件按工业级标准设计，适用于报警、提示、广播及传感类应用。我司作为 DIGISOUND 产品的授权经销渠道，可为中国客户提供选型支持、技术资料与稳定供货，具体规格以原厂 datasheet 为准。
技术参数
| Dimension | 22 x 7 x 26.5 mmPiezo Buzzer without oscillator |
|---|---|
| Rated Voltage | 9 VppPiezo Buzzer without oscillator |
| Sound Pressure Level | ≥85 dB(A) at 10 cmPiezo Buzzer without oscillator |
| Resonance Frequency (F0) | 2000 HzPiezo Buzzer without oscillator |
| Operating Temperature | -30 to +85 °CPiezo Buzzer without oscillator |
| Max. Input Voltage | 30 VppPiezo Buzzer without oscillator |
