产品概述

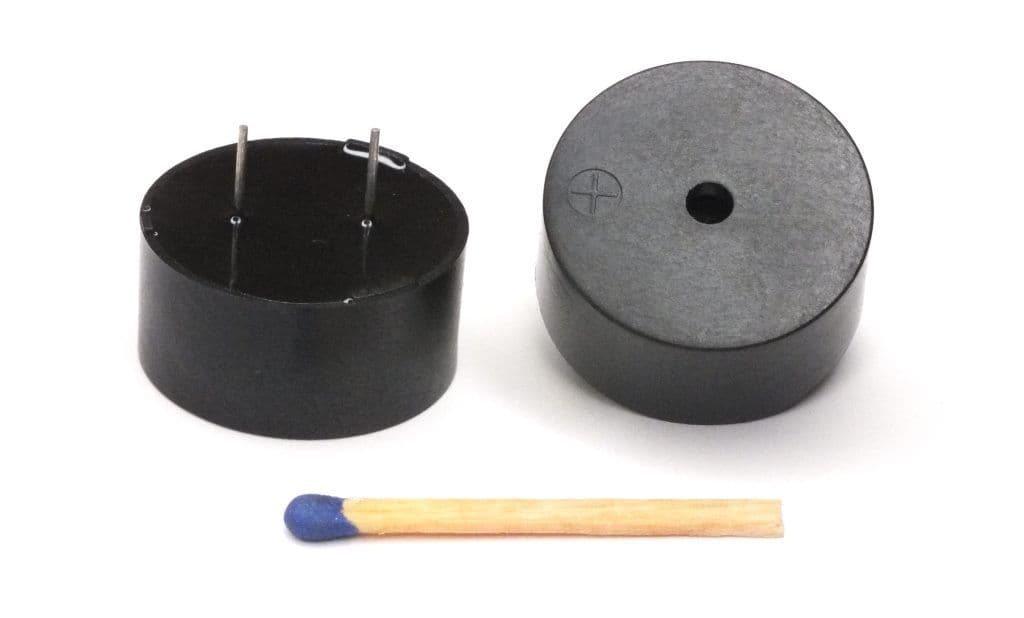

F-B-M2512EPB 是 DIGISOUND（德国电声器件制造商）旗下 Magnetic THT Buzzer without oscillator（蜂鸣器）产品。其核心参数包括：Ø24.5 x 12.8 mm；12 Vo-p；99 ±7 dB(A) at 1000 Hz 50% duty square wave。该器件按工业级标准设计，适用于报警、提示、广播及传感类应用。我司作为 DIGISOUND 产品的授权经销渠道，可为中国客户提供选型支持、技术资料与稳定供货，具体规格以原厂 datasheet 为准。
技术参数
| Dimension | Ø24.5 x 12.8 mmMagnetic THT Buzzer without oscillator |
|---|---|
| Rated Voltage | 12 Vo-pMagnetic THT Buzzer without oscillator |
| Operating Voltage | 7 - 16 Vo-pMagnetic THT Buzzer without oscillator |
| Sound Pressure Level | 99 ±7 dB(A) at 1000 Hz 50% duty square waveMagnetic THT Buzzer without oscillator |
| Resonance Frequency (F0) | 1000 HzMagnetic THT Buzzer without oscillator |
| Operating Temperature | -30 to +85 °CMagnetic THT Buzzer without oscillator |
| Resistance | 115 ±10 ΩMagnetic THT Buzzer without oscillator |
